SR310
RONWIN
SR310 Single GroovedRound Belt Driven Roller Conveyor
Application: Applied to the delivery of all kinds of goods, including boxes, bags, and pallets. To deliver bulk materials, small items, or irregular items, it is necessary to place them on a pallet or into a turnover box.
Features: A main axis and high-strength round belt drive the rollers, which feature a nice appearance, stable conveying, low noise, easy disassembly, and easy maintenance.

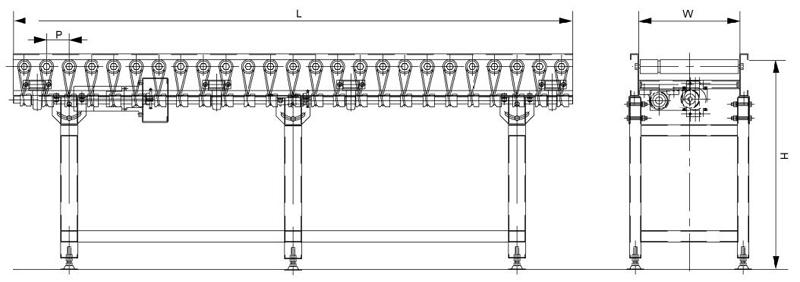

Model no. -rack inner width(W)-rack height(H)-rack length(L)-roller diameter(D)-roller pitch(P)- conveying speed(m/min)
Order no. example(unit mm): SR310-500-600-2000-50-100-8
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50, 60 |
| roller pitch | 75, 100, 150 |
| rack length | max. 20 meters |
| rack inner width | 500, 600, 700, 800, 900, 1000, 15000 or on customer's request |
| rack height | 500-1500, suggest 500 min. |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube, Aluminium profile |
| conveying speed | max. 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

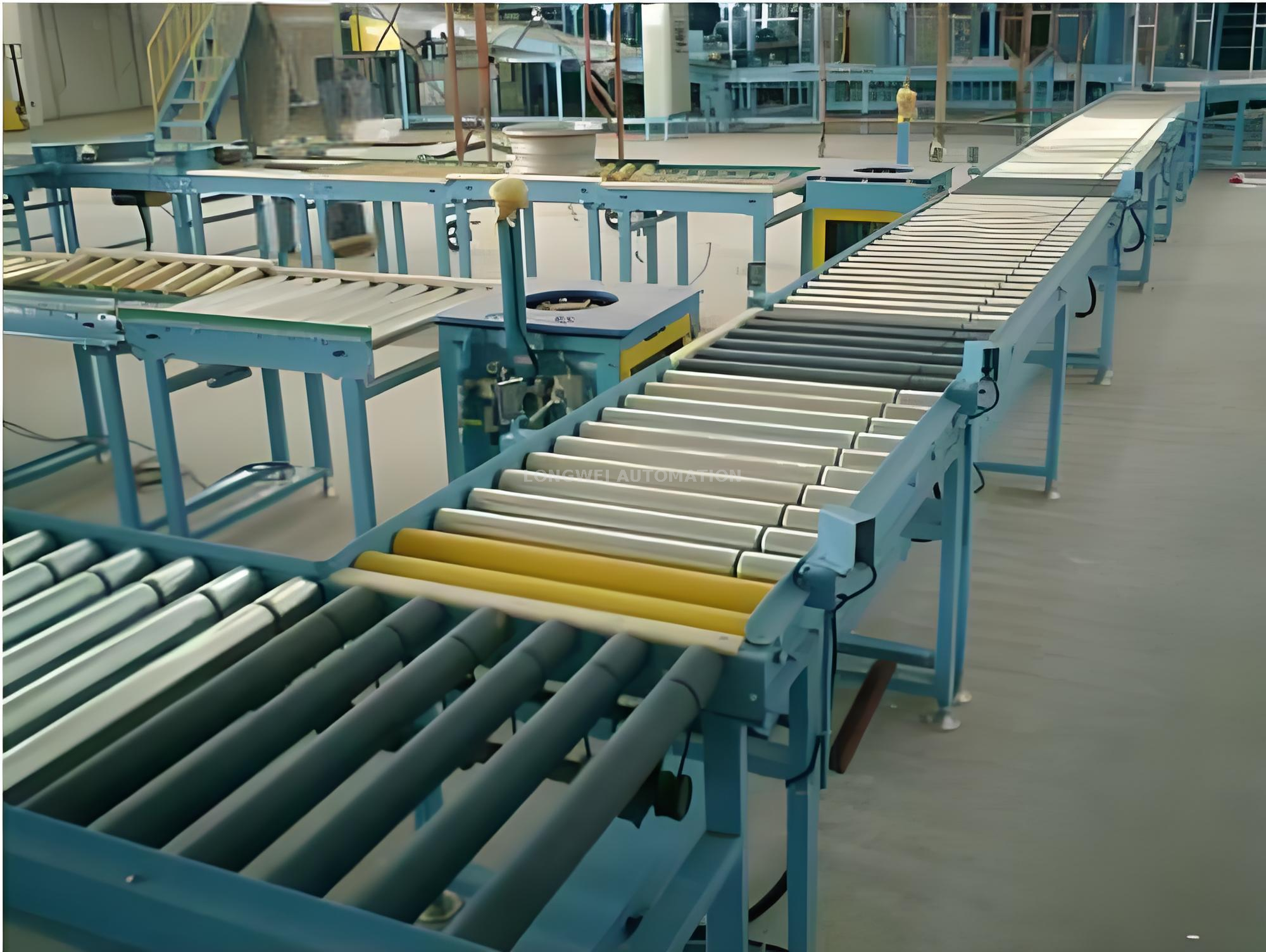

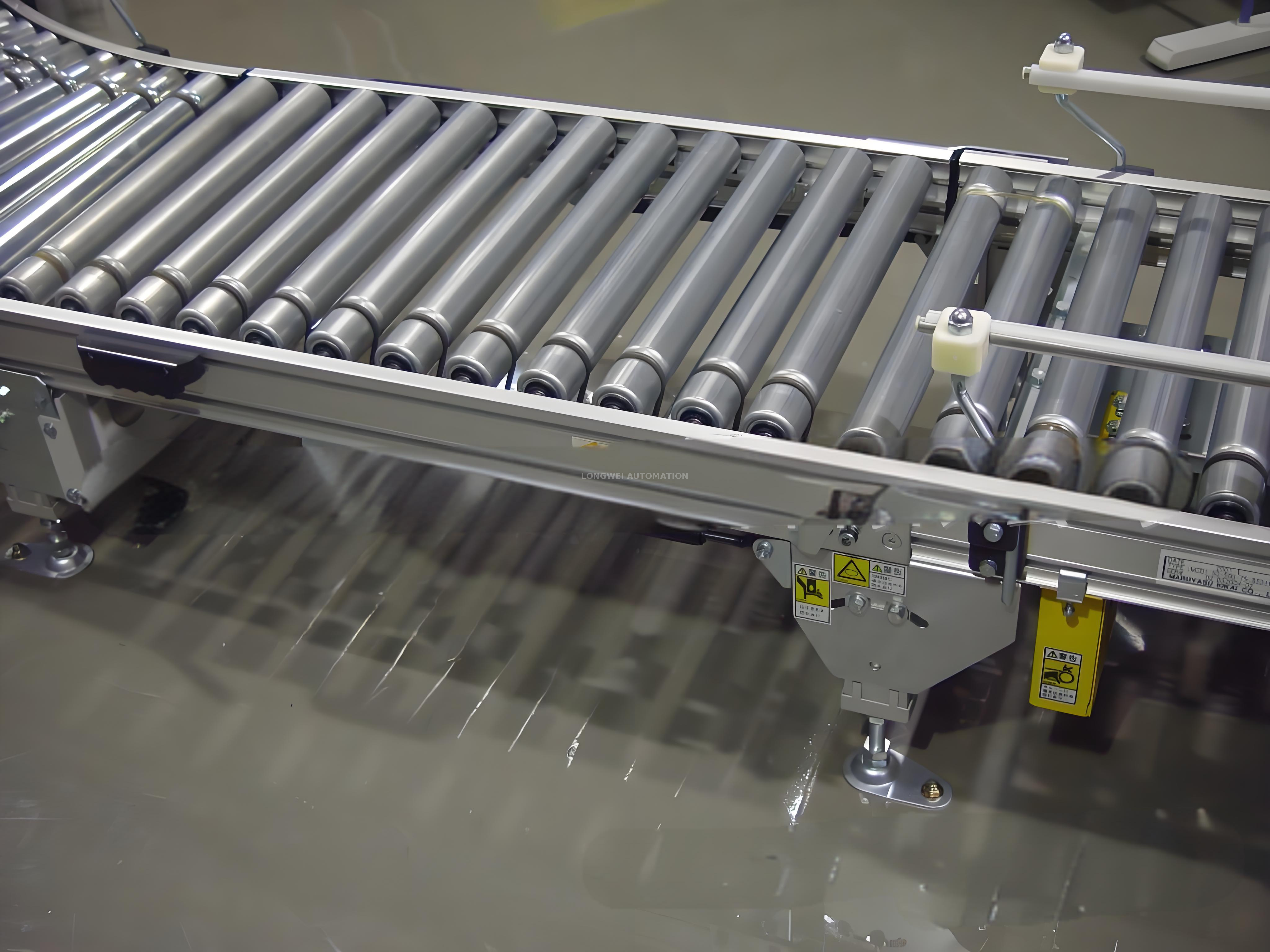

Some product pictures or applications
