| Material: | |
|---|---|
| Mounting Method: | |
| Surface Treatment: | |
| Shaft Type: | |
| Quantity: | |
R3816
RONWIN
HS Code: 8431390000

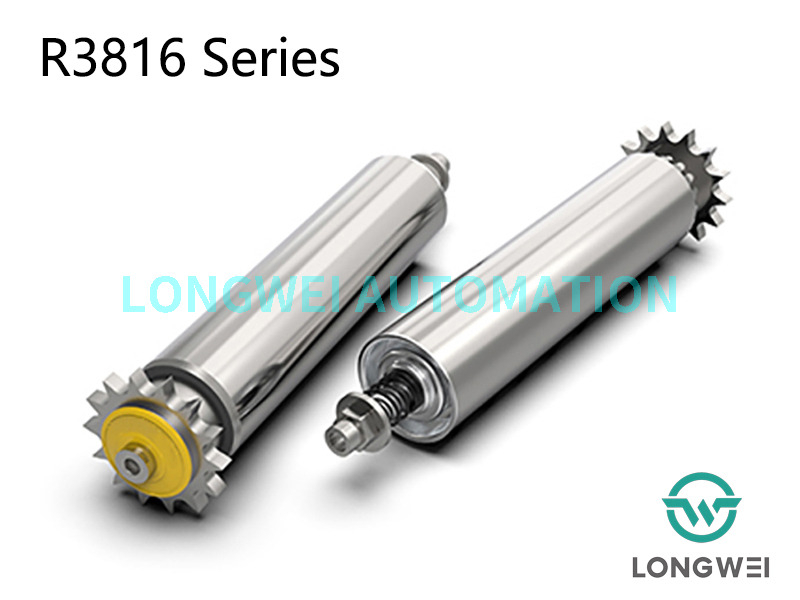

Series R3816 Steel Single-row Sprocket Adjustable Accumulating Roller
Application area
Internal conveying and accumulating unit handling conveyor systems, such as light and medium weight cardboard and containers. Also appropriate for use in the packing sector and for the implementation of buffer sections.
Adjustable accumulation force
The nut at the end of the roller allows for highly flexible adjustment of the accumulation force. A unique material was used to create the friction housing, considerably enhancing both its abrasion resistance and longevity.
Durable
Because the precision ball bearing is pressed firmly into the steel bearing housing, the roller benefits from smooth operation and durability.
Technical data
| General technical data | |
| Max. load capacity | 120 KGS |
| Max. conveyor speed | 30 m/min |
Temperature rang | −5 to +40 °C |
| Material | |
| Tube | Carbon steel, stainless steel |
| Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
| Bearing hosing | Steel, zinc-plated |
| End cap | Steel, zinc-plated |
| Bearing | Precision ball bearing |
| Drive element | |
Single/double row sprocke | Zinc-plated steel, black oxidation |
| Design versions | |
| Surface treatment | Zinc-plated, chrome-plated |
| Tube sleeves | PP sleeve, PU sleeve |
| Lagging | Rubber, PU |
Diagram of R3816 Steel Single-row Sprocket Adjustable Accumulating Roller
Dimension of series R3816 single-row steel sprocket adjustable conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12 | L=W+70 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ15 | L=W+70 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+78 | 10A13T |
